Pro-Max UV Sterilizer Amalgam High Output 3 inch 55 Watt - Lifegard Aquatics
)
Product Description

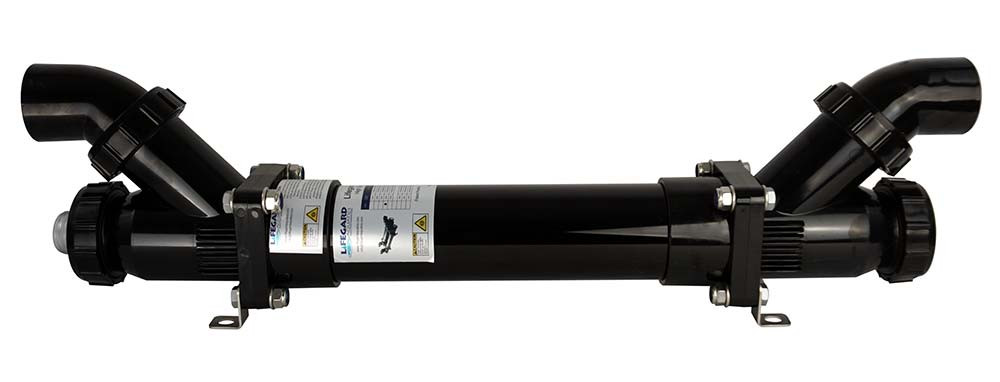

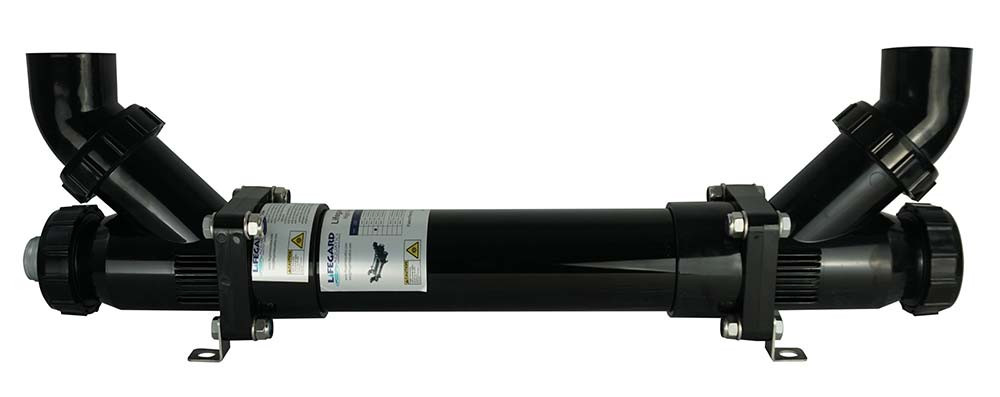

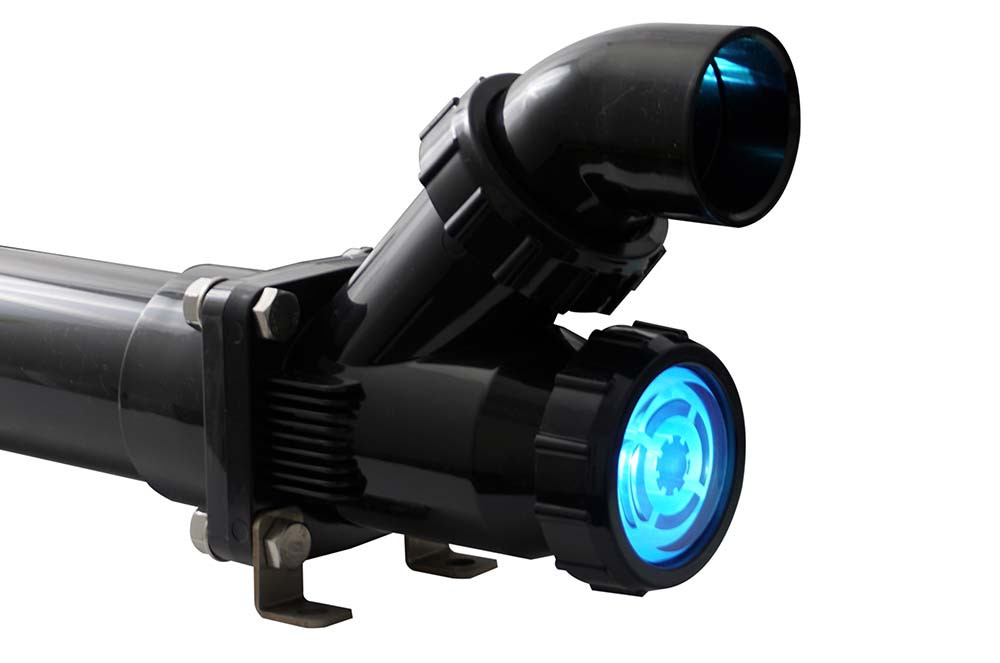

Lifegard Aquatics Pro-MAX High Output Amalgam UV Sterilizer - 3 inch - 55W
Lifegard Aquatics introduces the Pro-MAX™ UV Sterilizer, featuring a patent-pending, flow-through design with less restrictive angled inlet and outlet ports requiring less plumbing. This unique design enables easy installation of new or replacement systems as it can be positioned in multiple ways to fit any tight space. Available with 3" housing in 55, 90 and 120 Watt models. Each Pro-MAX™ features a High Output UV Bulb, Internal Protective Sleeve, and UL Listed Ballast which counts down the number of days until you need to replace the bulb. Maximum Operating Pressure 30 PSI.
Technical Data:
- 3" Amalgan High Output UV
- 55W / 1.2A
- 9000 hour lamp life
- 3600 GPH Max flow rate
- 2100 GPH Algae & Bacteria flow rate
- For aquariums up to 350 gallons
- For ponds up to 6000 gallons
- L x W x H = 27" x 4.51" x 9"
| Pro-MAX UV Sterilizer Model | Lamp Watts | Lamp Current | UV Output - Micro Watts | UVC/µW/cm | Lamp Life (Hours) | UV-C Output (Watts) | Max Flow Rate | Max Water Flow Algae & Bacteria UVC 30,000 µW/cm2 | Max Aquarium Size | Max Pond Size |
| 3" Amalgam High Output UV - 55W | 55 | 1.2A | 0.15 | 150 | 9000 | 16.5 | 3600 GPH | 2100 GPH | 350 Gallons | 6000 Gallons |
| 3" Amalgam High Output UV - 90W | 90 | 1.2A | 0.27 | 270 | 9000 | 28 | 4600 GPH | 2800 GPH | 650 Gallons | 11000 Gallons |
| 3" Amalgam High Output UV - 120W | 120 | 1.2A | 0.32 | 320 | 9000 | 37 | 6000 GPH | 4000 GPH | 900 Gallons | 14500 Gallons |
Guidelines/Tips:
- For Protozoa 180,000 µW/cm2 – Cut down the flow rate by minimum 1/6th. Monitor the temperature when reducing the flow as low flow may result in extra heat that can cause damage to the UV and system.
- All HO UV Sterilizers have 2" Union Inlet/Outlet.
- "Suggested" Water Flow Rates are New Lamp Conditions. All water flow rates incorporate a 90% UV transmittance factor. UV Lamp Useful “Effective” Life is 9000 hours.
