Product Description
Modern Skimmer Design & Functionality

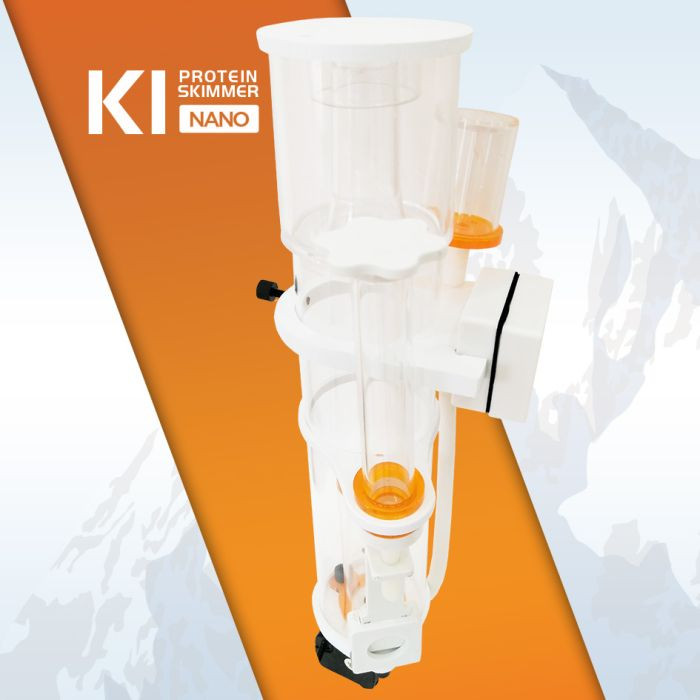

The impressively compact footprint of the IceCap K1-Nano Protein Skimmer is the ideal candidate for small aquariums up to 30 gallons. The included magnet mount allows for easy placement on surfaces up to a half-inch thick. Enjoy the quiet operation and adjustment provided by the submerged pipeless output valve. It also disassembles completely for easy cleaning and maintenance.
Compact & Built to Last
Master crafted from robust PVC and high-quality acrylic. All components are marine safe and refined in every aspect to provide the latest enhancements in foam fractionation and the highest in quality.
An impressively compact footprint makes it the ideal candidate for tight compartment applications. Every aspect of the skimmer disassembles completely for easy service.
Quiet Performance & Control
At the Core of the IceCap K1, you will find the DCair 200 skimmer pump built to provide efficient performance.
The pipeless output offers fine-tuning and trouble free underwater outflow plus quiet operation. Our pipeless design not only saves on space but also allows the outgoing water to exit on the side of the skimmer and below the water surface providing splash-free circulation in the sump.
Bioload Handling
The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.
(EXCLUDING SUMP)
- Heavy: 10 gallons
- Medium: 20 gallons
- Light: 30 gallons
Impressive Performance - Remarkably Small Footprint
- Magnet Mount
- Distinctive Turbulence Reducing Body
- Solid PVC & Acrylic Construction
- Bubble Dispersant Chamber
- Pipeless Output Valve
- Efficient & Quiet Operation
- Disassembles Completely for Easy Cleaning & Maintenance
- In-Sump Installation Only
K1-Nano Technical Specs
Skimmer Body: 2in

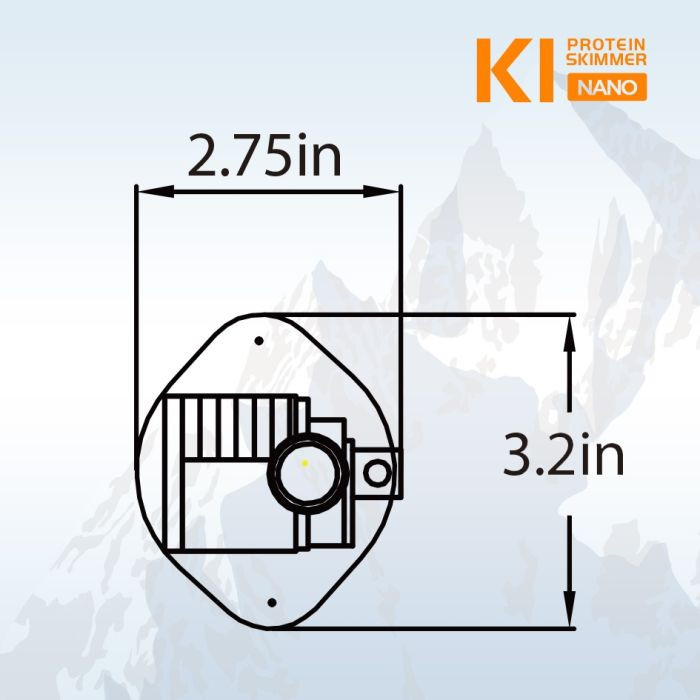

Footprint: 2.7in x 3.2in
Footprint with mount: 4.75 x 3in or 3.5 x 4in
Total Height: 13in
Magnet Mount: Up to 1/2in thick
Recommended
Water Height: 6 - 9in
Pump Information
DCair 200 Pinwheel Pump
Power Consumption: 5watts
Air Draw: 100lph / 3.5scfh*
Water Draw: 26gph
*Air and water results will vary depending on aquarium setup
Warranty
- One(1) year warranty on pump and Skimmer body
IceCap can not be responsible for consequential damages arising from the installation or use of this product. IceCap warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase. CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.
NOTE: This warranty is void if the product is damaged through abnormal operating conditions, accident, abuse, misuse, unauthorized alteration, or repair. This warranty is valid only in North America and is non-transferable. Consumable spare parts are not applicable to the warranty.
WARRANTY
CoralVue, Inc. and IceCap hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
PRODUCT SUPPORT
To submit a warranty claim, please visit our CoralVue Support Portal
