VarioS 4 Controllable Circulation Pump

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6

Price:
$339.99
SKU:
VARIOS-4
Brand:
Current Stock:
2
Quantity:

Product Description

VarioS-4 Circulation Pump

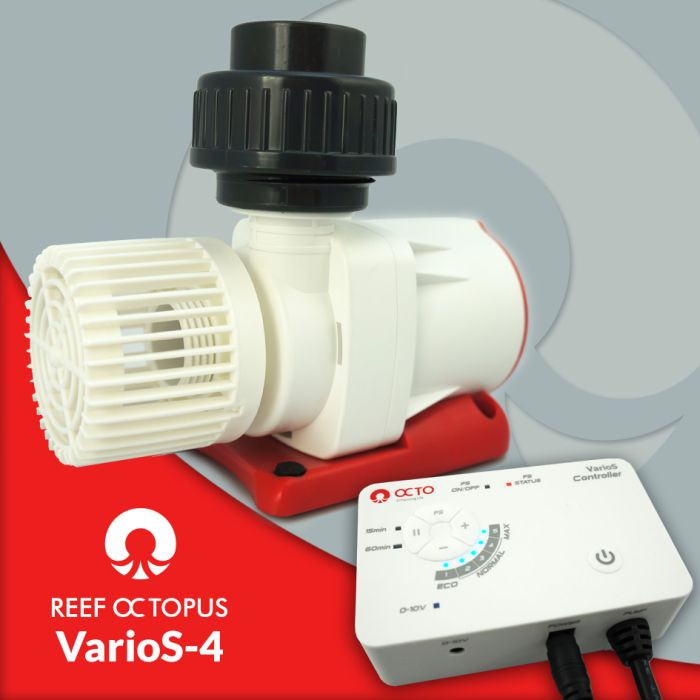

The Reef Octopus VarioS 4 Circulation Pump features a detachable controller with mount, a high-quality ceramic shaft with propeller bearing to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy efficiency, and safer operations.

Unlike the vast majority of circulation pumps which use alternating current (AC), the VarioS pump boasts several key advantages over traditional AC pumps like greater energy efficiency safer low voltage operation, and producing less heat per volume of flow.

>>> Now the aquarist can have full control of the water flow through their sump, reactors, filters, or closed loop systems!!!

REFINED CONTROL

In addition to allowing the pump to run at 5 different speeds, which is pretty standard for a DC pump, the new VarioS Controller takes the pump to a new level featuring:

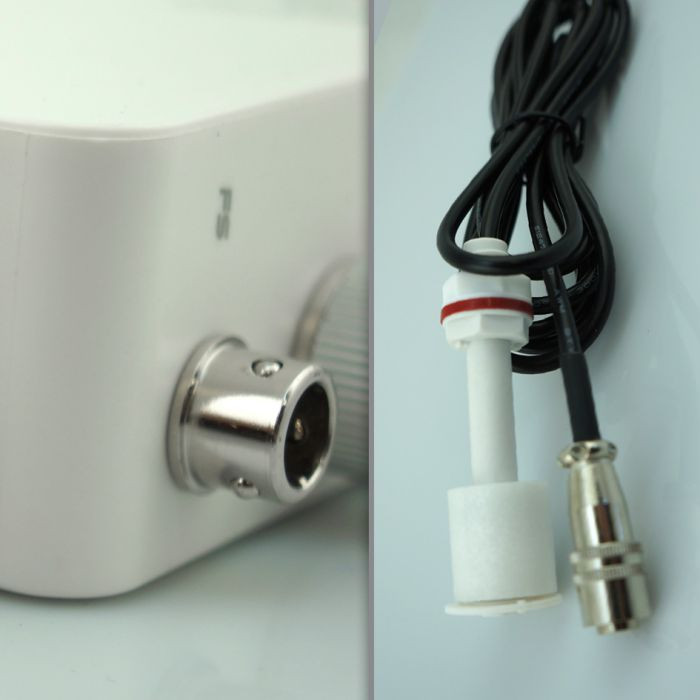

  1. A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This added security feature will enable you to shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
  2. Two different pause/feed modes will shut off the pump for either 15 or 60-minute intervals. These come in handy when you are feeding the tank or conducting regular maintenance such as a water change.

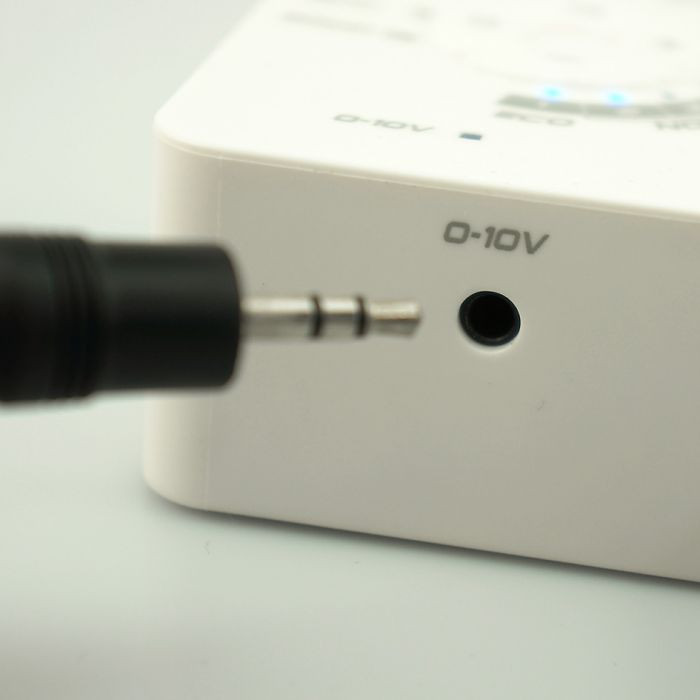

  3. The best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as CoralVue HYDROS Control X4/X10, Neptune System’s APEX, or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller's native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

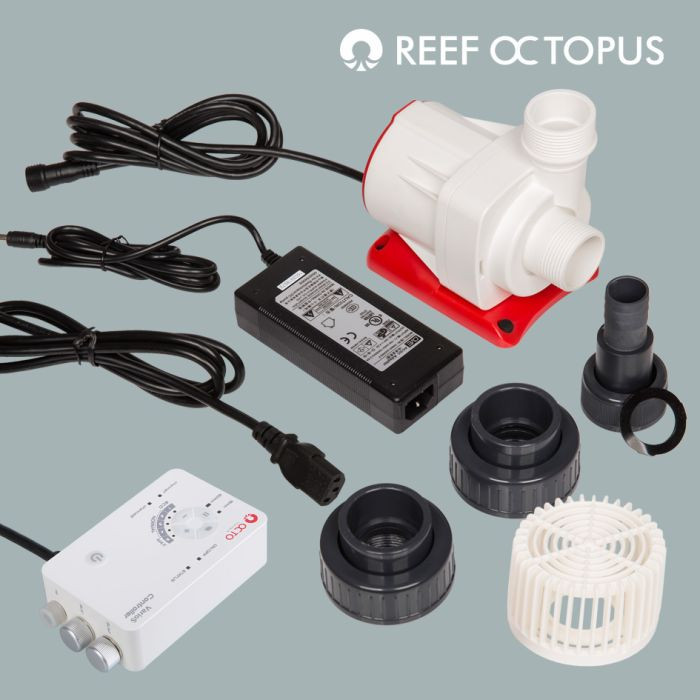

Includes: VarioS pump, controller, float switch, power supply, output and input union for plumbing direct PVC, versatile stepped barb output fitting for flex tubing, and protective intake screen.

The VarioS pump has a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.

The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90-degree intervals, meaning users can output water vertically (up or down) as well as horizontally.

Water Pump Specs:

  • Input: 1.25" Male Union Thread
  • Output: 32mm/1" Slip PVC or 3/4" Barb
  • Max Flow: 1050 GPH
  • Max Head: 14.7 FT
  • MWattage: 40W
  • Voltage: 24V DC
  • Dimensions: 5.7" L x 3.75" W x 5.5" H
  • Cable Length: 6 FT
  • Pump Warranty: 2 Years
  • Rotor Warranty: 1 year

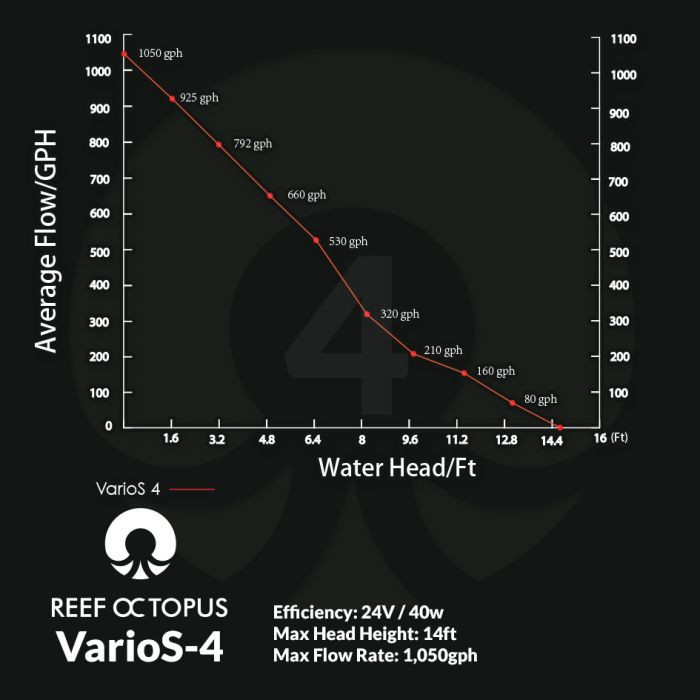

Power Level Max Head Height Max Flow Rate Power
  Meter Feet LPH GPH W
1 2.9 9.5 2800 740 20
2 3.5 11.5 3000 798 25
3 3.8 12.5 3200 845 30
4 4.2 13.8 3600 950 36
5 4.5 14.7 4000 1056 40
Note: The chart does not reflect head pressure caused by restrictive plumbing.
