Pro-Max UV Sterilizer Standard High Output 3 Inch 40 Watt - Lifegard Aquatics
)
Product Description

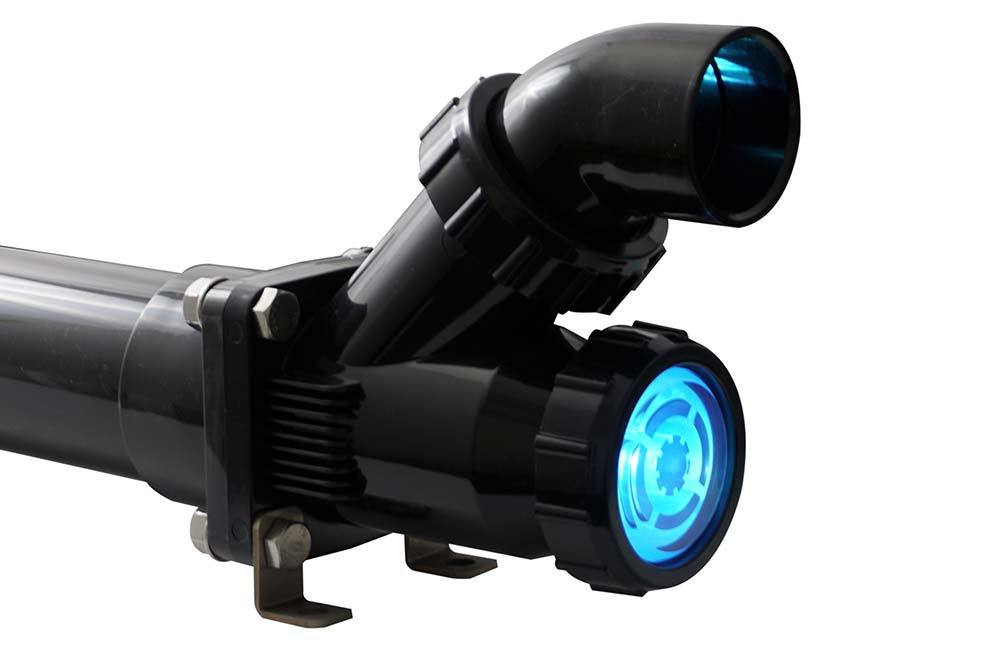

Lifegard HO Standard UV Sterilizer - 3 inch - 40 watt
Lifegard Aquatics introduces the High Output UV Sterilizer, featuring a patent-pending, flow-through design with less restrictive angled inlet and outlet ports requiring less plumbing. This unique design enables easy installation of new or replacement systems as it can be positioned in multiple ways to fit any tight space. Available with 3" housing in 25 and 40 Watt sizes. Each standard features a High Output UV Bulb and Internal Protective Sleeve. Maximum Operating Pressure 30 PSI.
Technical Data:
- 3" Standard High Output UV 40W
- 40W / 1.2A
- 9000 hour lamp life
- 2500 GPH Max flow rate
- 1200 GPH Algae & Bacteria flow rate
- For aquariums up to 250 gallons
- For ponds up to 4700 gallons
- L x W x H = 38.6" x 4.51" x 9"
| Pro-Max Model | Lamp Watts | Lamp Current | UV Output Micro Watts | UVC µW/cm | Lamp Life (Hours) | UV-C Output (Watts) | Max Flow Rate | Max Water Flow Algae & Bacteria UVC 30,000 µW/cm2 | Max Aquarium Size | Max Pond Size |
| 3" Standard High Output UV - 25W | 25 | 1.2A | 0.05 | 50 | 9000 | 7.5 | 1000 GPH | 550 GPH | 130 Gallons | 2400 Gallons |
| 3" Standard High Output UV - 40W | 40 | 1.2A | 0.125 | 125 | 9000 | 12 | 2500 GPH | 1200 GPH | 250 Gallons | 4700 Gallons |
Guidelines/Tips:
- For Protozoa 180,000 µW/cm2 – Cut down the flow rate by minimum 1/6th. Monitor the temperature when reducing the flow as low flow may result in extra heat that can cause damage to the UV and system.
- All HO UV Sterilizers have 2" Union Inlet/Outlet.
- “Suggested” Water Flow Rates are New Lamp Conditions. All water flow rates incorporate a 90% UV transmittance factor. UV Lamp Useful “Effective” Life is 9000 hours.
